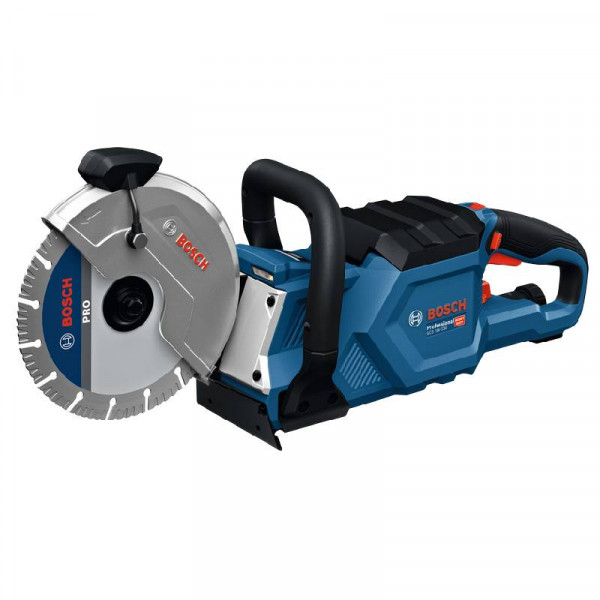

The Bosch GCS 18V-230 Cutoff Saw delivers fast, powerful, and efficient cutting performance in both metal and concrete. Driven by a high-performance brushless motor, it provides the strength and reliability needed for demanding cutting applications on the jobsite. With its accessible, patented spindle lock lever, you can easily change the wheel in record time. This cutoff saw’s convenient brake function helps keep you protected by rapidly stopping the rotation of the cutting wheel as soon as the trigger is released. The GCS 18V-230 cutoff saw also features a spring-assisted battery removal system that makes for easy removal of larger 18 V batteries when batteries need to be recharged, or wheels need to be changed.

• Powerful and efficient thanks to brushless motor
• Fast, easy wheel change with accessible, patented spindle lock lever
• Keeps you protected with a brake function that rapidly stops rotation of the wheel when the trigger is released
• Easy and fast removal of battery with spring-assisted battery removal system

Equipment & Application:
The Bosch GCS 18V-230 cutoff saw is for commercial, concrete, and demolition contractors, as well as tradespeople working with masonry or stone façades. It is for cutting metal including rebar, pipe, metal studs and metal deck. It also wet cuts concrete in applications like scoring concrete for demolition, cutting cinder block, landscaping bricks and pavers.

Additional Information:
The Bosch GCS 18V-230 cutting saw features a wrap-around handle for optimum tool balance, 6 guard adjustment positions, an ergonomic on/off trigger with side release lever, a quick-connect hose adapter connection and a water shutoff valve to control the water supply for wet cutting in concrete. It also has an LED light for worksite illumination and a battery status indicator.

Technical Data:

The most important data:

• No-load speed*:   6,200 1/min
• Max. cutting depth:  83 mm
• Weight excl. battery*:  5.35 kg
• Battery voltage:  18.0 V

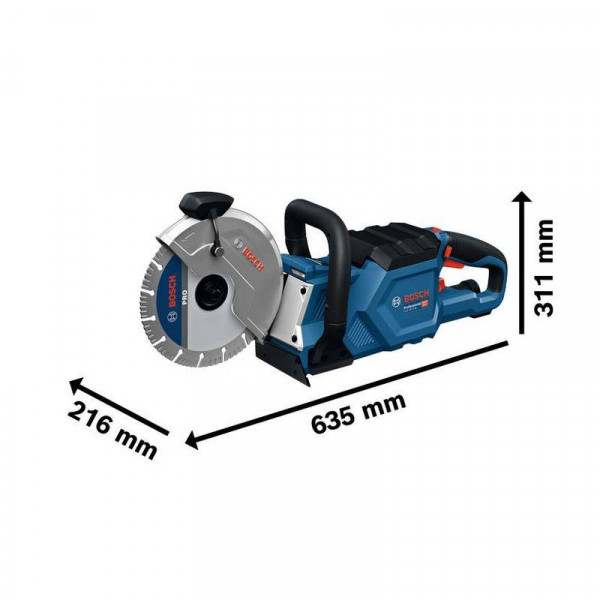

• Packaging dimensions (width x length x height):  260 x 640 x 305 mm
• Disc diameter:  230 mm
• Disc bore:  22.2 mm

Noise/vibration information:

• Sound pressure level:  95 dB(A)
• Sound power level:  106 dB(A)
• Uncertainty K:  3 dB
